Multi Derma System MDS 3000

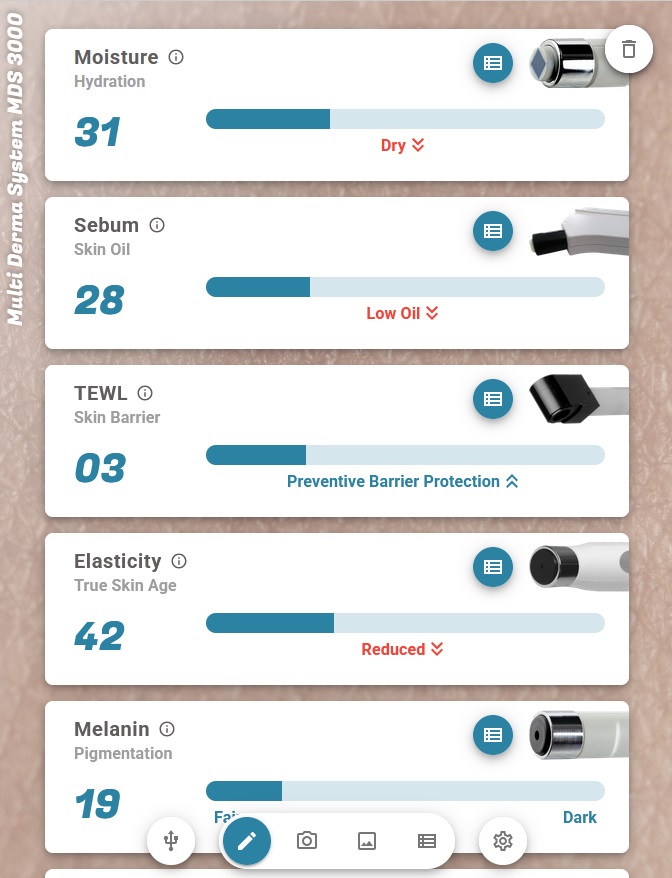

The MDS 3000 features a tablet as a wireless display unit – connected via Wi-Fi integrated in the main unit. Simply switch on the device and the tablet connects automatically, providing a clear, intuitive touchscreen user interface for all measurements and camera images.

Key Features

• Skin Hydration Measurement
  Quick and easy measurement on the face and body.
  Results are clearly displayed as: very dry, dry, or prevent loss (sufficiently hydrated skin).
• Oil (Sebum) Content Analysis
  Measurement within and outside the T-zone, as well as on hair and scalp.
  Results are shown as: low oil, balanced, or oily.
• Skin Elasticity Measurement & “Real Skin Age”
  Assessment of skin firmness and elasticity using the new Elasto probe with the proven suction method.
  The fully integrated pump ensures maximum flexibility, high precision, and comfortable handling.
• Skin Colour Analysis
  Evaluation of pigmentation and redness, including automated recommendations for an appropriate sun protection factor (SPF), ideal for seasonal sun-care promotion.

• Visioscope^® PC 35 Skin Camera
  Equipped with parallel and cross-polarized light:

• Parallel-polarized light visualizes the skin’s surface structure
• Cross-polarized light reveals deeper skin layers such as pigmentation and vascular structures

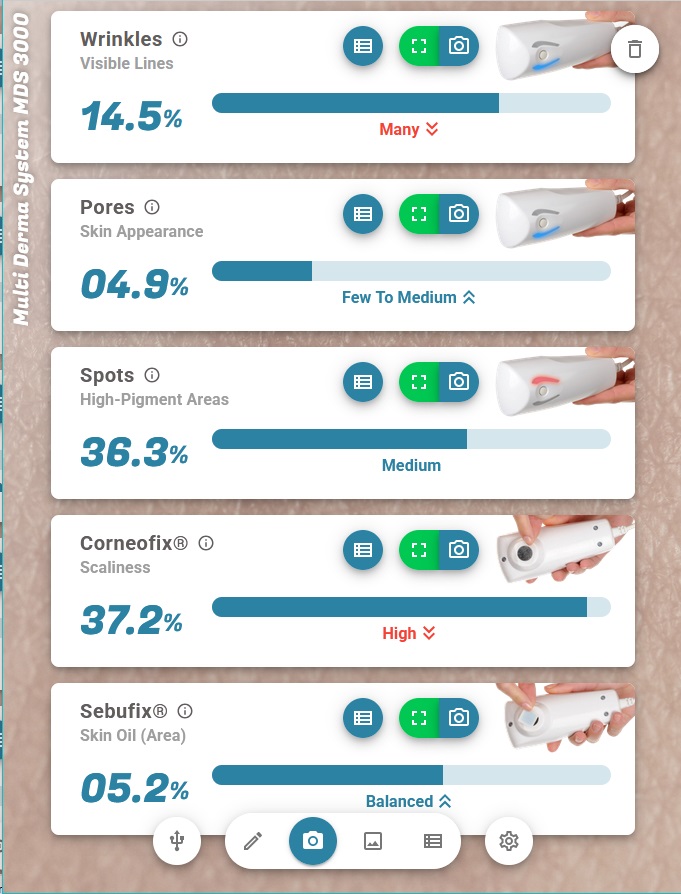

Illumination modes can be changed instantly at the push of the camera button. Based on the captured images, the software performs an easy and objective image analysis of wrinkles, pores and spots. Take your clients on a visual journey across face and body.
The camera is also ideal for monitoring hair and scalp conditions such as hair damage, dandruff or scalp irritation.

• Quantitative Analysis with Special Tapes
  The Sebufix^® and Corneofix^® tapes, supplied in practical dispenser systems, are used in combination with the Visioscope^® camera to provide clear, visual results of sebum production and skin scaliness that are easy to explain to clients.

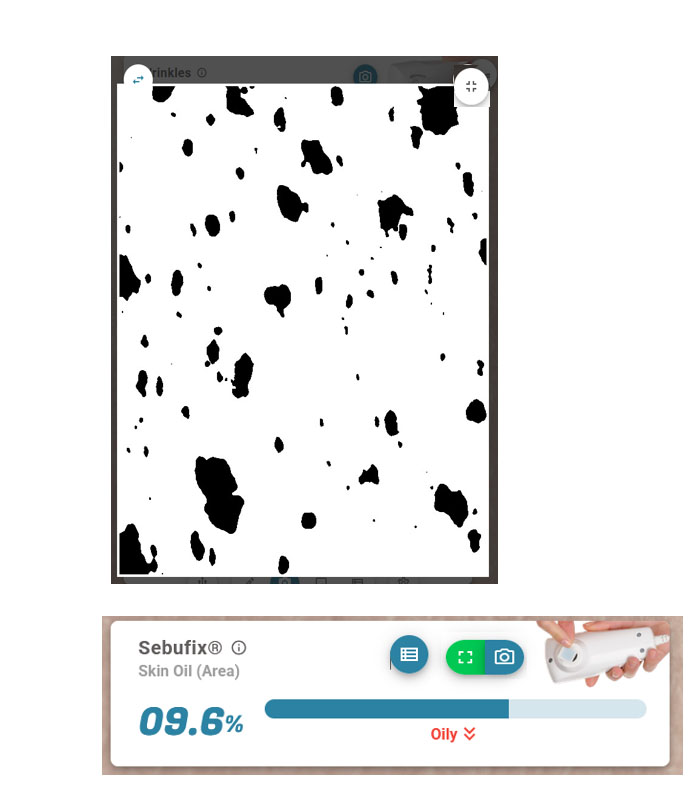

Sebufix^® F 16 displays sebum production in real time

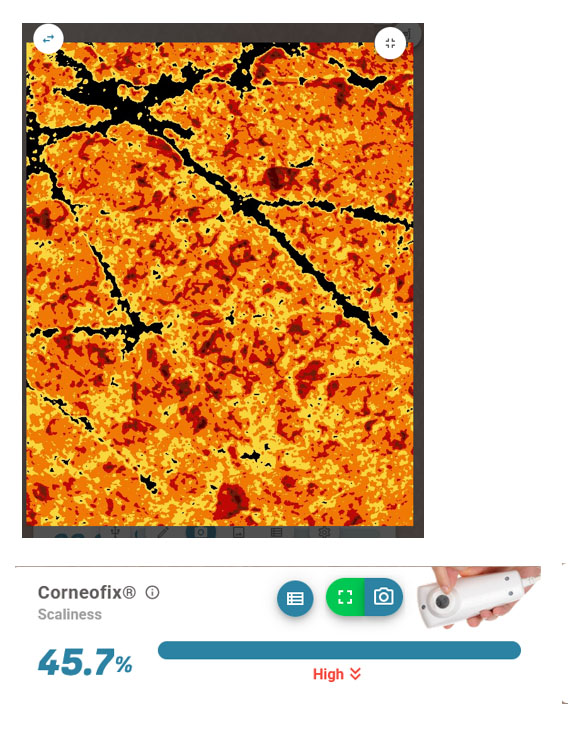

Corneofix^® F 20 enables detailed analysis of desquamation and dryness.

• Optionally available to suit your specific applications: TEWL measurement for assessing the quality of the skin barrier, pH measurement (skin's acidic mantle), and the special UV camera Visiopor^®, which makes porphyrin fluorescence impressively visible. Simply connect them and they are automatically detected and integrated in the MDS 3000 application.

• Attractive design

A sleek, modern appearance perfectly suited for professional cosmetic and wellness environments.

• No computer required

Professional skin analysis redefined — powerful, intuitive, and completely PC-free.

• State-of-the-art technology

The tablet serves as the display and can be used in portrait or landscape mode. Additional screens, such as large TVs, can be connected wirelessly to attract even more attention. The tablet is powered directly by the device, requiring no additional power cable. Analysis meets action: detach the tablet and present results right where purchase decisions happen.

• Fast, easy and impressive analysis

Quick measurements combined with high-resolution close-up images create an convincing consultation experience. Measurement results are clearly interpreted and displayed clearly on the device, transparent for customers to follow and trust.

• Individual product recommendations based on the measurements

Provide tailored recommendations for skin care, hair care, sun care, special products and treatments – a proven strategy for long-term customer loyalty.

• Digital result sharing

Skin analysis summaries can be sent directly to the client’s smartphone via QR code (in preparation).

• Individual fitting for your purposes

The system flexibly detects which probes or cameras are connected and adapts the application accordingly.

• Mobile and compact

Detachable tablet design makes the system lightweight and convenient to transport.

• Ideal for promotional activities

Simply detach the tablet from the device and accompany your customer directly to the product shelf. For special promotions, results and images can also be displayed instantly on a large screen – maximum attention guaranteed! The MDS 3000 is the perfect tool for special or seasonal promotional campaigns, such as
hand and nail weeks,
men’s care,
sun protection consultations for skiing holidays or summer vacations,
and more.

The MDS 3000 - an expandable system designed for the future!

Dimensions Device: L x W x H: 265 x 285 mm, Weight: approx. 3 kg (without probes and tablet/tablet holder).

Connectivity: 6 probe connectors & 2 USB cameras (front side), 1 Ethernet port (rear)

Display: The system works with an Android tablet connected to the device’s WIFI (not part of the delivery content), Example: Lenovo Tab Tablet, 10.1"; tablet can be placed in portrait or landscape mode. Please ask for tablet specifications.

Electrical characteristics: Supply voltage: 100-240 VAC/12VDC, Tablet charged via main device, charger output voltage: 5VDC

Probes & Cameras:

Moisture: Measurement: capacitance, Time: 1 second, Scale 0-99, Frequency: 0.9-1.2 MHz, Dimension: 11 cm, Weight: 41 g, Cable length: 1.3 m

Sebum: Measurement: photometrical, Time: 10 seconds, Scale 0-99, Dimensions: 8.5 x 11.3 x 2.3 cm, Weight: 65 g, Number of measurements: approx. 400-450 (if the trigger is only pulled down slowly for the next free measuring section). When tape is consumed, the whole cartridge has to be renewed.

Elasticity: Measurement: suction with 400 mbar pressure – pump integrated in the probe, Time: 6 seconds (3 seconds suction and 3 seconds relaxation), Scale 0-99, Probe opening: 2 mm Ø, Dimensions L x W x H: 16.5 x 3 x 4 cm, Weight: 120 g, Cable length: 1.3 m

Melanin/Pigmentation: Measurement: absorption/reflection, Nominal wavelength: 3 colour measuring system green: λ peak = 568 nm, red: λ peak = 660 nm, infrared: λ peak = 880 nm, Time: 1 second, Scale 0-99, Dimensions: 13 cm x Ø 2.4 cm, Weight: 85 g, Cable length: 1.3 m

Visioscope^® PC 35 USB skin camera: Power supply: 5 V DC (via main device), Dimensions: 12 x 5.5 x 5.5 cm, Weight: 220 g, Cable length: approx. 1.5 m, Light source: white LED →multi-function camera button switches the polarization mode (short press) and freezes the image (long press), Resolution: 5:4, 1280 x 1024 pixels, Image size: minimum 8 x 6.4 mm, on the screen approx. up to 15-20 x-zoom depending on the monitor size

Sebufix^® F 16: Milky tape to determine the sebum content qualitatively, Dimensions: 1.7 x 1.7 cm, Thickness: 0.2 mm

Corneofix^® F 20: Transparent tape to assess desquamation, Dimensions: 2.00 x 1.95 cm, Thickness: 0.1 mm

Tapes are completely harmless to the skin.

Optional probes & camera:

TEWL-Index: Open-chamber-measuring-principle, Measuring time approx. 20 s (20 meausrements), Units: index values: 0-20, Length: approx. 12 cm, Weight: approx. 40 g, Cable length: 1.3 m

pH: Measuring range: pH 0 to pH 11, Resolution: 0.1 pH, Length: 26.5 cm, Ø electrode: 12 mm, flat measurement head, Weight: approx. 116 g, Cable length: 1.3 m

Visiopor^® PP 34N - USB UV fluorescent camera: Power supply: 5 V DC (via main device), Dimensions: 12 x 5.5 x 5.5 cm, Weight: 220 g, Cable length: 1.5 m, Port: USB (type A connector), UV-light source: 16 UVA- LEDs, 375...385 nm, special polarization filter, Camera button freezes the image, Resolution: 5:4, 1280 x 1024 pixels, Image size: minimum 8 x 6.4 mm

Technical changes may be made without prior notice.
